LLM Arch Cards

What is inside an open-weight model, read from its config and checked against the Hub.只读配置文件，拆解开源模型的内部结构，并与 Hub 交叉核对。

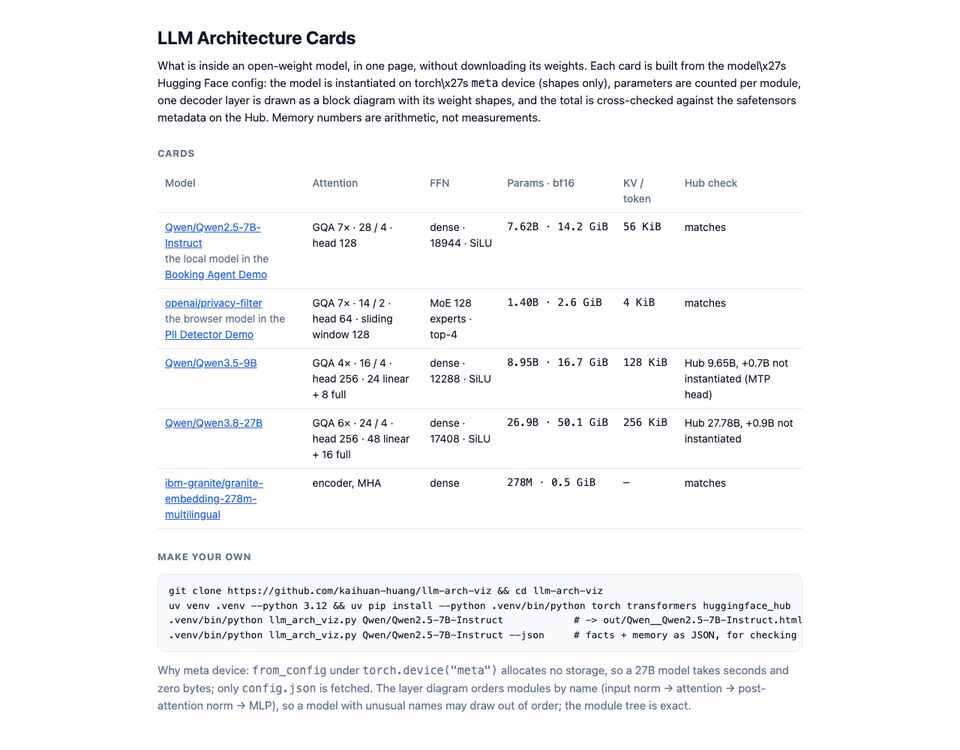

LLM Architecture Cards: attention layout and parameter split of an open-weight model

01Problem问题

Choosing a model for a GPU box means knowing its attention layout, KV-cache cost and real parameter count, before spending an hour downloading weights.为一台 GPU 机器选模型，需要在花一小时下载权重之前，先知道它的注意力结构、KV 缓存成本和真实参数量。

02Flow流程

HF configHF 配置
meta devicemeta 设备
Module tree模块树
Matches the Hub?与 Hub 一致？
Architecture card架构卡片

03What I built我做了什么

Instantiate the model on torch's meta device (shapes only), so a 70B model takes seconds and zero disk.在 torch 的 meta 设备上实例化（只有形状），70B 模型也只需几秒、零磁盘。
Render attention kind, FFN or MoE, layer schedule, one decoder layer with weight shapes, and memory arithmetic for bf16 / int8 / int4.渲染注意力类型、FFN 或 MoE、层调度、带权重形状的单个解码层，以及 bf16 / int8 / int4 的内存估算。
Cross-check the parameter total against the Hub's safetensors metadata and explain any delta.与 Hub 的 safetensors 元数据交叉核对参数总量，并解释差异。

04Measured测量结果

published model cards已发布的模型卡片

src · llm-arch-viz/README.md

0 B

weights downloaded per card每张卡片下载的权重

src · llm-arch-viz/llm_arch_viz.py

05Limits, stated plainly局限，直说

Memory figures are arithmetic, not measurements. No automated tests yet.内存数字是计算值而非实测；尚无自动化测试。
